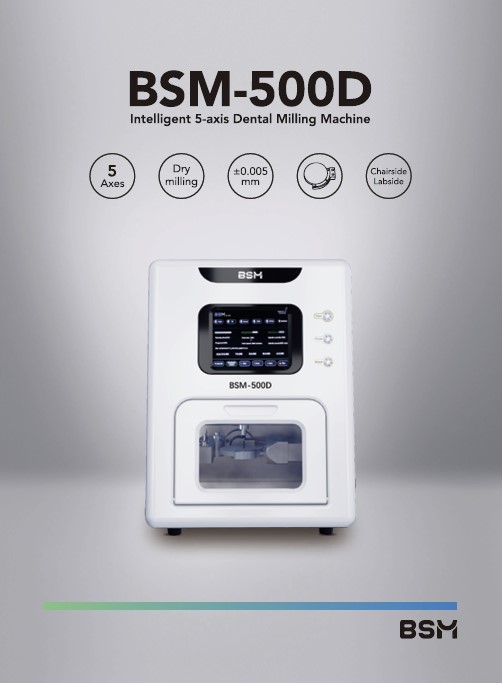

BSM-500D

5-Axis Dry Milling Machine

Compact Power, Unmatched Precision

The BSM 500D is a compact yet powerful 5-axis dry milling machine designed for exceptional precision, intelligent automation, and reliable performance. Engineered with a strong gantry structure and ±5μm milling accuracy, it delivers efficient, high-quality milling for dental labs and chairside practices alike.

With a built-in working status indication light for real-time monitoring and an automatic suspension feature that stops operations if the door is accidentally opened, the BSM 500D prioritizes both precision and safety. Its German-engineered high-speed spindle (up to 60,000 RPM) ensures superior milling performance for zirconia, wax, PMMA, and PEEK restorations.

Key Features & Advantages

1. Unmatched Precision

✔ Digital servo system for high-resolution control
✔ ±0.005mm milling & repetition accuracy ensures superior restoration quality

2. Intelligent Automation

✔ Automatic tool changer for seamless operation
✔ Power-off protection & break-point resume for uninterrupted milling
✔ Automatic suspension function prevents injuries from accidental door openings
✔ Intelligent working status indication light for real-time process monitoring

3. Rock-Solid Reliability

✔ Heavy-duty industrial design with an aerometal structure for long-lasting durability
✔ Gantry structure with thermal expansion symmetry for enhanced stability
✔ High-frequency integrated ionizer neutralizes electrostatic buildup when milling PMMA and plastics

4. Efficient, High-Speed Milling

✔ German-engineered spindle with speeds up to 60,000 RPM
✔ 1/3 holder system boosts disc production by 20%

⏱ Milling Speeds:

• Coping: 11 min (Zirconia) | 5 min (Wax)
• Crown: 16 min (Zirconia) | 6 min (Wax)
• Frame: 45 min (PMMA/PEEK)

Data based on BSM 500D milling of Aconia HT+ 14mm.

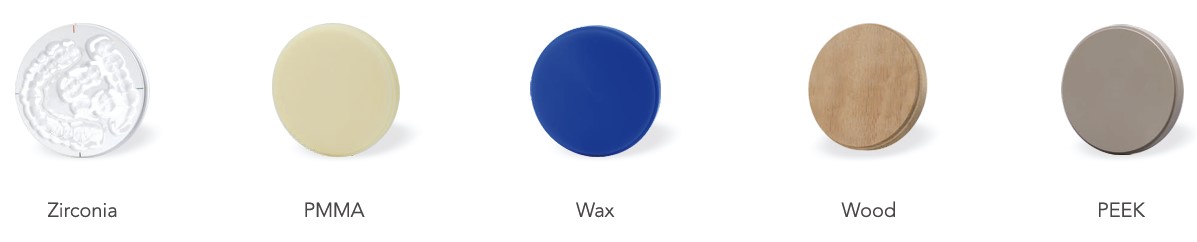

Restoration Materials

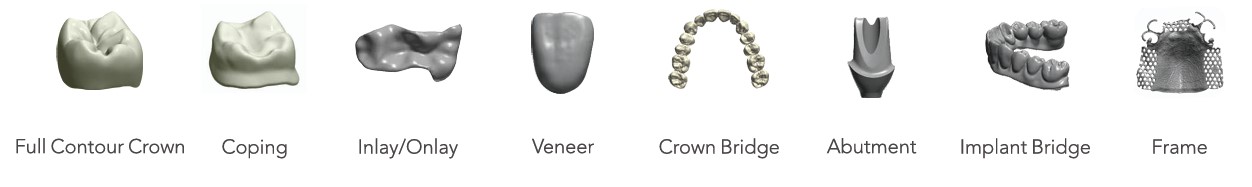

Restoration Types

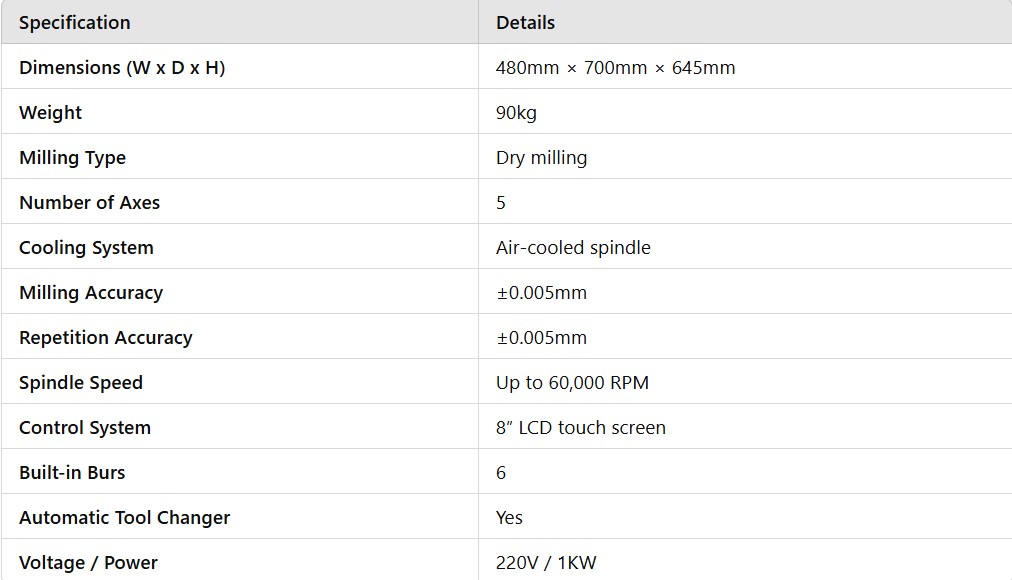

Specifications
