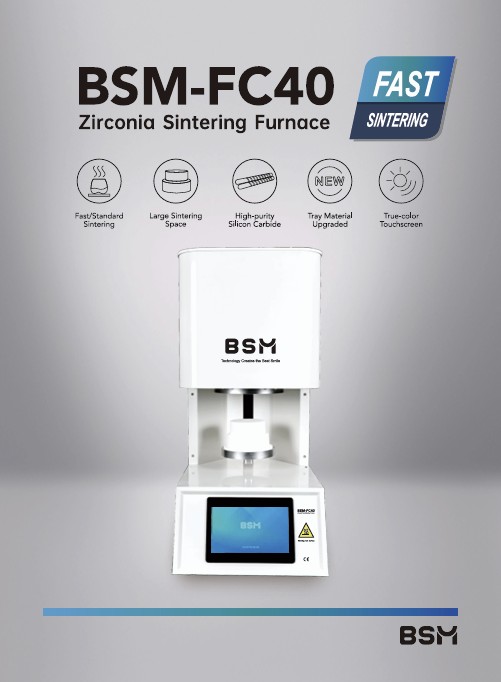

BSM-FC40

Fast Sintering Zirconia Furnace

Precision, Speed, and Efficiency

The BSM-FC40 is a high-performance zirconia sintering furnace designed for dental laboratories and clinics seeking precision, efficiency, and reliability. With advanced heating technology, a spacious sintering chamber, and intelligent cooling, it ensures flawless results every time.

Key Features & Advantages

Key Features

🔹 Ultra-Fast Sintering
Powered by high-purity silicon carbide heating elements, the BSM-FC40 achieves temperature increases of up to 50°C per minute, reducing sintering time for 1-3 zirconia units to just 180 minutes—without compromising strength or color integrity.

🔹 High-Capacity Sintering Chamber
Accommodates two sintering trays (⌀100mm), allowing for the simultaneous sintering of up to 80 single crowns, significantly boosting workflow efficiency.

🔹 Innovative ‘Sandwich’ Thermal Insulation
A three-layer insulation system enhances heat retention, improves energy efficiency, and ensures consistent sintering quality.

🔹 Circular Heating for Even Sintering
The 4-element circular heating arrangement guarantees uniform temperature distribution throughout the chamber, delivering superior sintering results.

🔹 Pre-Set & Custom Sintering Programs
Includes four pre-programmed sintering modes optimized for Aconia zirconia, plus 100 customizable program slots, providing flexibility for various zirconia materials.

🔹 Enhanced Sintering Trays
Upgraded with high-density, thermal shock-resistant material, minimizing cracking risks during rapid heating and extending tray lifespan.

🔹 Intelligent Two-Stage Cooling
Automated cooling lowers the sintering platform at 800°C and 500°C, reducing cooling time while eliminating manual intervention and minimizing burn risks.

The BSM-FC40 delivers faster turnaround times, higher efficiency, and unparalleled sintering precision—a must-have for modern dental labs.

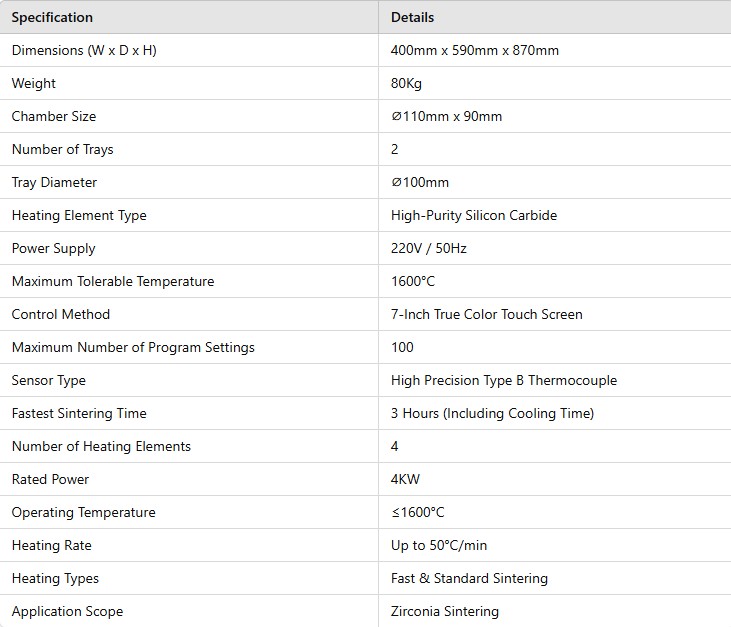

Specifications
