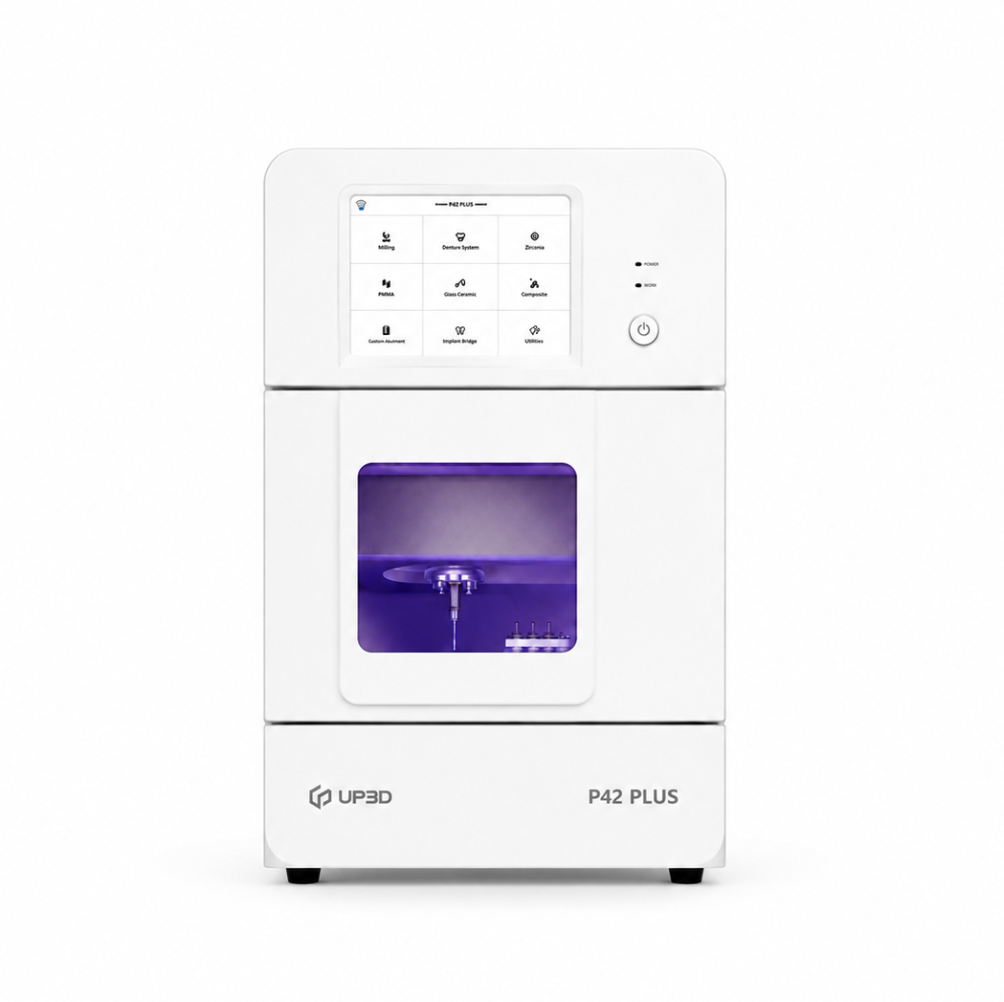

UP3D P42 PLUS Wet Milling Machine



Compact Wet Dental Milling Machine — No Compressor Required

The UP3D P42 PLUS is a compact, high-precision wet dental milling machine designed for dental laboratories, practice labs, and chairside workflows. Its self-contained design requires no external air compressor, making installation simple and allowing the machine to be placed virtually anywhere—just plug it in and start milling.

Built around pure-water wet milling technology, the P42 PLUS eliminates the need for milling additives while maintaining a clean and efficient workflow. This helps simplify maintenance, reduce operating costs, and minimize material waste.

With a high-frequency spindle reaching 60,000 RPM, a rigid cast-monoblock structure, and precision motion components, the P42 PLUS provides the stability and accuracy needed for demanding restorative work. Its intelligent cooling system helps maintain consistent milling performance across a wide range of materials.

Designed for Same-Day Dentistry

The P42 PLUS is particularly well suited for chairside and same-day restorative workflows. When integrated with the UP3D Soreal chairside system, scanning, design, nesting, and milling can be connected into one streamlined digital workflow. This allows clinicians and practice labs to move efficiently from digital impression to finished restoration without relying on an outside laboratory for every case.

Smart Milling for Better Fit

UP3D’s UPCAM technology and ±20° A-axis swing allow the P42 PLUS to access challenging anatomy and efficiently remove undercuts. This helps produce accurate-fitting restorations while reducing the amount of manual adjustment and finishing required after milling.

The P42 PLUS also supports dual veneer nesting, allowing multiple veneers to be positioned on a single ceramic block. By making better use of each block, laboratories can reduce material waste and improve production efficiency. The machine can also process up to three different material sizes simultaneously, providing additional flexibility for mixed restorative workflows.

Advanced Features

No Compressor Required

The P42 PLUS uses pure-water wet milling and does not require an external air compressor. Its compact, self-contained design makes it particularly attractive for dental practices and laboratories where space and noise are concerns.

60,000 RPM High-Frequency Spindle

The high-frequency spindle reaches up to 60,000 RPM and uses automatic tool changing, providing the speed and precision required for efficient milling of dental materials.

Built-In HD Camera

A built-in high-definition camera provides real-time visibility of the milling process. This makes it easier to monitor production, troubleshoot issues, and provide remote technical support when needed.

Smart CAM Workflow

The P42 PLUS works with UPCAM and UPCNC, providing automated toolpath calculation, smart nesting, and four-axis milling strategies designed to simplify the workflow and reduce manual setup.

Easy Touchscreen Operation

An integrated touchscreen and UPCNC control interface make machine operation straightforward, allowing users to manage setup and milling with minimal training.

Upgraded Milling Burs

UP3D’s redesigned burs feature improved coating uniformity to help reduce edge chipping and produce smoother margins. The updated design also extends tool life and reduces the frequency of bur replacement.

Materials

The P42 PLUS supports wet milling of:

• Glass ceramics
• Titanium
• Composite resin
• PMMA

It accommodates blocks up to 40 × 20 × 20 mm.

Indications

The P42 PLUS can be used for a wide range of restorative applications, including:

• Full crowns
• Full-crown bridges
• Screw-retained crowns
• Inlays
• Onlays
• Veneers
• Customized abutments
• Three-unit bridges

Technical Specifications

Specification	P42 PLUS
Milling Type	Wet Milling
Cooling	Pure Water
External Compressor	Not Required
Spindle Speed	60,000 RPM Max
Spindle Power	800 W Peak / 450 W Continuous
A-Axis Swing	±20°
Tool Holding	Ø4.0 mm
Maximum Block Size	40 × 20 × 20 mm
Materials	Glass Ceramics, Titanium, Composite Resin, PMMA
Connectivity	Wi-Fi, USB, Ethernet
Power	AC 100–240 V, 50–60 Hz
Dimensions	564 × 402 × 564 mm
Weight	80 kg

What’s Included

The standard P42 PLUS package includes:

• Milling burs
• Accessories
• Calibration tools
• UPCNC software
• Standard UPCAM software
• Documentation
• Weekday remote diagnostics and technical support

Optional Upgrades

For laboratories requiring additional capabilities, UP3D offers optional:

• TK abutment holders
• Additional milling burs
• Advanced UPCAM software

The optional TK holders support compatible implant systems including DESS®, Geo CMFit®, Dentium®, Osstem®, Arum®, and MEDENTiKA®.

Compact Footprint. Professional Milling. No Compressor.

The UP3D P42 PLUS combines precision wet milling, intelligent CAM technology, and a compact compressor-free design in one efficient system. Whether you’re outfitting a dental practice for same-day dentistry or adding wet milling capabilities to a laboratory, the P42 PLUS provides a streamlined path from digital design to finished restoration.
