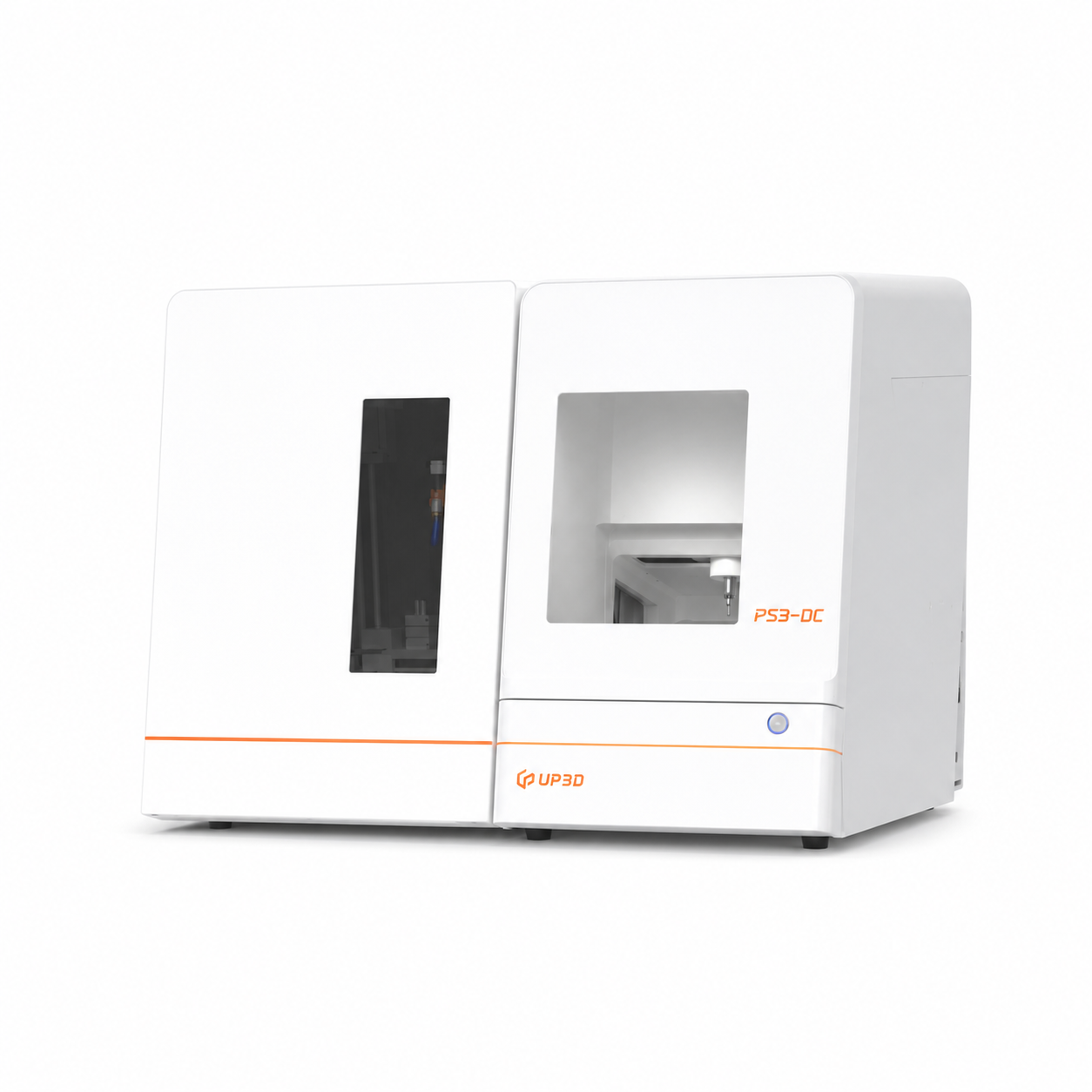

UP3D – P53DC
The UP3D P53DC is a high-production 5-axis dry dental milling machine engineered to maximize efficiency through intelligent automation and continuous operation. Designed for busy dental laboratories and milling centers, the P53DC features a fully automated 12-disc changer that allows uninterrupted production across multiple materials without manual intervention. Its precision 5-axis milling technology delivers exceptional accuracy for everything from single-unit restorations to full-arch prosthetics while helping laboratories increase throughput and reduce labor.
Built for demanding digital workflows, the UP3D P53DC combines a high-speed spindle, 11-tool automatic changer, and open CAD/CAM compatibility with advanced automation features, including intelligent material management and remote production monitoring. The machine’s rigid cast aluminum construction, 90-degree vertical milling capability, and integrated ionizer ensure outstanding precision, efficient material utilization, and consistently high-quality restorations.
Advantages
• Automated high-volume production: A 12-disc automatic changer enables continuous, unattended milling across multiple materials, increasing productivity and reducing downtime.
• Exceptional milling precision: Simultaneous 5-axis machining, 90-degree vertical milling, and intelligent tool strategies produce highly detailed restorations with excellent marginal accuracy and surface quality.
• Smart digital workflow: Intelligent material management, automatic nesting, remote monitoring, and open CAD/CAM compatibility streamline production from design through final restoration.
Technical Parameters
Product Type: 5-axis dry dental CAD/CAM milling machine with automatic disc changer
Applications: Crowns, bridges, veneers, inlays, onlays, implant restorations, screw-retained crowns, implant bridges, removable partial denture frameworks, full dentures, bite splints, aligners, and dental models
Milling Technology: Simultaneous 5-axis dry milling
Compatible Materials: Zirconia, PMMA, wax, PEEK, composite resin, and CoCr sintering metals
Material Capacity: Up to 12 automatic 98.5 mm discs and compatible milling blocks
Spindle: High-frequency precision spindle
Maximum Spindle Speed: Up to 60,000 RPM
Tool Capacity: 11-position automatic tool changer
Disc Changer: 12-disc automatic material changer
Maximum Feed Rate: 3,000 mm/min
Construction: Solid cast aluminum machine bed
Workflow: Open CAD/CAM compatibility with UPCAM
Connectivity: Ethernet with remote production monitoring
Dimensions: 719 × 872 × 639 mm
Weight: 138 kg
Ideal Users: High-volume dental laboratories, milling centers, and digital production facilities
