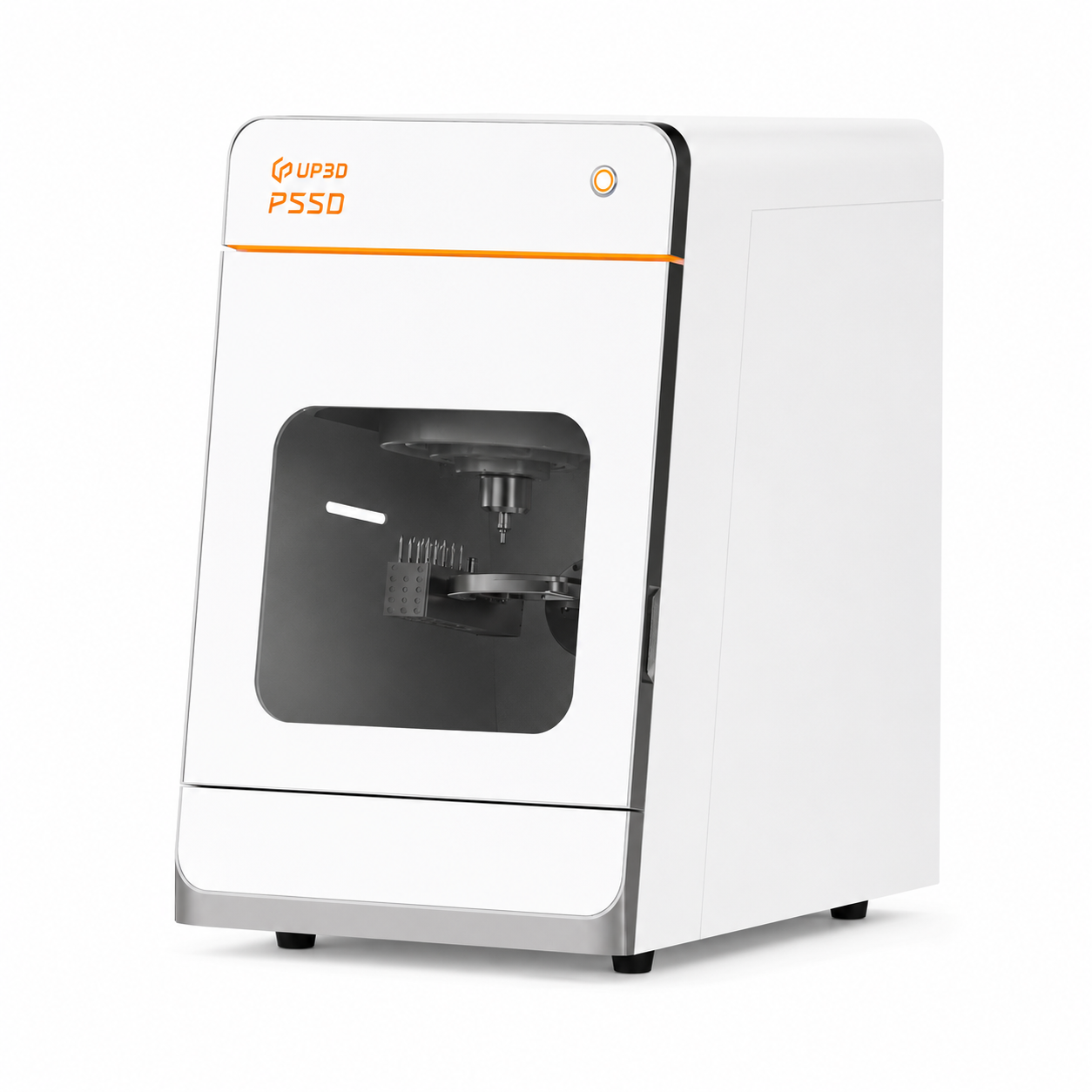

UP3D – P55D
The UP3D P55D is a compact 5-axis dry dental milling machine engineered to deliver exceptional precision, speed, and efficiency for dental laboratories and in-office production. Featuring a high-speed German spindle, intelligent Smart Servo technology, and compressor-free operation, the P55D provides stable, accurate milling while reducing installation complexity, maintenance, and operating costs. Its compact footprint makes it an excellent solution for practices and laboratories with limited space without compromising performance.
Designed for continuous digital workflows, the UP3D P55D supports a wide range of restorative applications, including crowns, bridges, veneers, implant restorations, dentures, bite splints, and models. The machine features a 13-tool automatic changer, integrated ionizer for cleaner resin milling, and open CAD/CAM compatibility, allowing users to produce highly accurate restorations with minimal manual intervention.
Advantages
• High-precision 5-axis milling: Smart Servo technology and a high-speed 60,000 RPM spindle deliver exceptional accuracy, smooth surface finishes, and reliable milling performance.
• Compressor-free operation: Eliminates the need for an external air compressor, creating a quieter workspace while reducing installation time, maintenance, and equipment costs.
• Intelligent automation: A 13-position automatic tool changer, integrated ionizer, and open CAD/CAM workflow maximize productivity while minimizing downtime.
Technical Parameters
Product Type: 5-axis dry dental CAD/CAM milling machine
Applications: Crowns, bridges, veneers, inlays, onlays, implant restorations, screw-retained crowns, bite splints, removable partial denture frameworks, full dentures, models, and aligners
Milling Technology: Simultaneous 5-axis dry milling
Compatible Materials: Zirconia, PMMA, wax, PEEK, composite resin, and CoCr sintering metals
Spindle: High-frequency German spindle
Maximum Spindle Speed: Up to 60,000 RPM
Spindle Power: 800 W peak power
Tool Capacity: 13-position automatic tool changer
Control System: Smart Servo 5-axis precision drive
Maximum Feed Rate: 3,000 mm/min
Workflow: Open CAD/CAM compatibility with UPCAM software
Connectivity: Ethernet
Dimensions: 442 × 595 × 704 mm
Weight: 106 kg
Ideal Users: Dental laboratories, in-office laboratories, milling centers, and digital dental production facilities
