UP3D – F30
Porcelain Furnace
Precision and Durability Combined

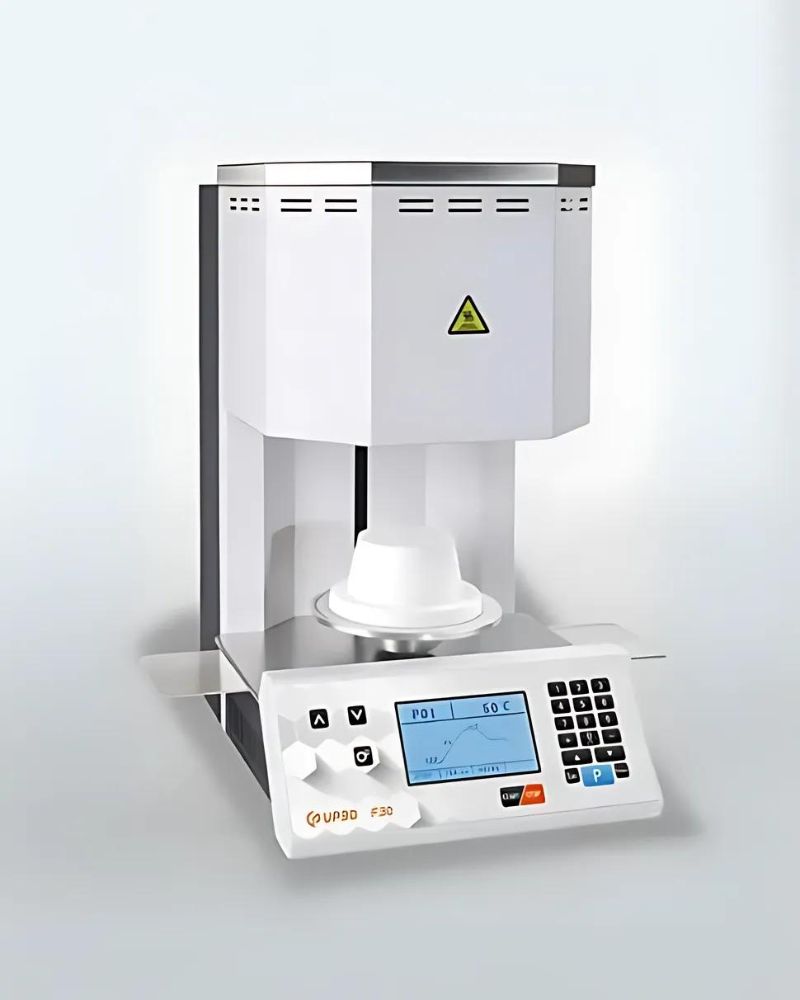

The UP3D F30 Porcelain Furnace is engineered for exceptional performance and reliability in dental laboratories. Featuring a cutting-edge double-layer metal chamber protection design, the F30 provides unmatched thermal insulation by incorporating an independent vacuum path within a double-layer metal interlayer. This advanced design not only enhances insulation but also improves overall energy efficiency, ensuring your work is completed with precision and consistency.
The redesigned chamber of the F30 further boosts insulation performance while simplifying maintenance. The modular construction of the furnace body allows for easy access to components, reducing downtime and extending the lifespan of the machine.
Built to withstand the rigors of high-temperature operations, the UP3D F30 can handle temperatures up to 1150°C. The heating elements, protected by durable quartz tubes, ensure uniform and efficient heat distribution, contributing to the extended longevity of the furnace.
Choose the UP3D F30 Porcelain Furnace for a reliable, high-performance solution that meets the demanding needs of modern dental laboratories.
Specifications
| Model | F30 |
| Input Voltage/Frequency | 220V/50Hz±10% |
| Heating Rate | 10~100℃ |
| Maximum Input Power | 1200W + 350W |
| Maximum Working Temperature | 1150℃ |
| Ultimate Vacuum | ＜35mmHg |
| Constant Temperature Time | 00:30-30:00min |
| Chamber Usable Size | ф85*55(mm) |
| Protection Level | IPX1 |
| Fuses | Fuse 1: 3.0A , Fuse 2: 8.0A |
| Net Weight | 26.5kg |
| Dimensions(cm) | Width 33 * Depth 42 * Height 56 |
