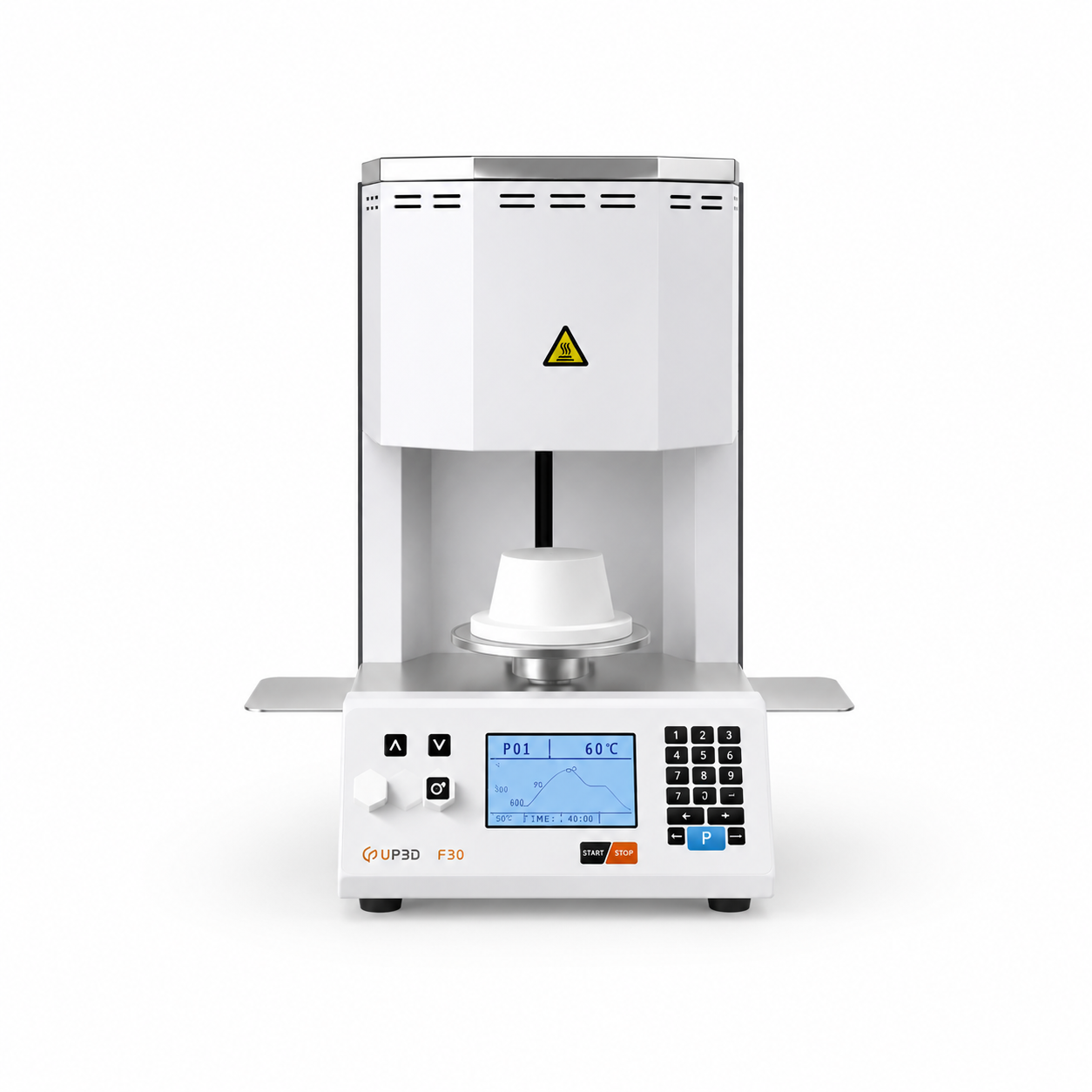

UP3D – F30
The UP3D F30 is a high-performance dental porcelain furnace designed for glazing, crystallization, stain firing, and ceramic restoration processing. Engineered for precision and consistency, the F30 features advanced vacuum technology, intelligent temperature compensation, and a double-layer insulated chamber that promotes uniform heat distribution while improving energy efficiency. Its compact footprint makes it an excellent solution for both dental laboratories and chairside restorations.
Designed to streamline ceramic workflows, the UP3D F30 includes programmable firing cycles, an intuitive touchscreen interface, and automatic vacuum management for reliable, repeatable results. Quartz tube-protected heating elements help extend component life while maintaining consistent firing temperatures, allowing clinicians and technicians to achieve high-quality esthetics with confidence.
Advantages
• Precision ceramic firing: Advanced temperature compensation and vacuum technology deliver consistent glazing, crystallization, and ceramic firing results.
• Efficient operation: A double-layer insulated chamber reduces heat loss while improving temperature stability and energy efficiency.
• User-friendly workflow: Programmable firing programs, automatic vacuum functions, and an intuitive touchscreen simplify operation and increase productivity.
Technical Parameters
Product Type: Dental porcelain furnace
Applications: Glazing, crystallization, stain firing, ceramic restorations, porcelain restorations, and lithium disilicate processing
Maximum Temperature: 1,150°C
Heating Rate: 10–100°C per minute
Heating Elements: Quartz tube-protected heating elements
Vacuum System: Dual-valve vacuum technology
Ultimate Vacuum: Less than 35 mmHg
Programs: 60 customizable firing programs
Hold Time: 30 seconds to 30 minutes
Chamber Size: 85 × 55 mm
Temperature Control: Intelligent temperature compensation
Maintenance Features: Built-in vacuum testing, cleaning, and drying programs
User Interface: Digital touchscreen display
Power Supply: 220V, 50Hz
Maximum Input Power: 1,550W
Dimensions: 330 × 420 × 560 mm
Weight: 26.5 kg
Ideal Users: Dental laboratories, chairside CAD/CAM practices, and digital dental manufacturing facilities
