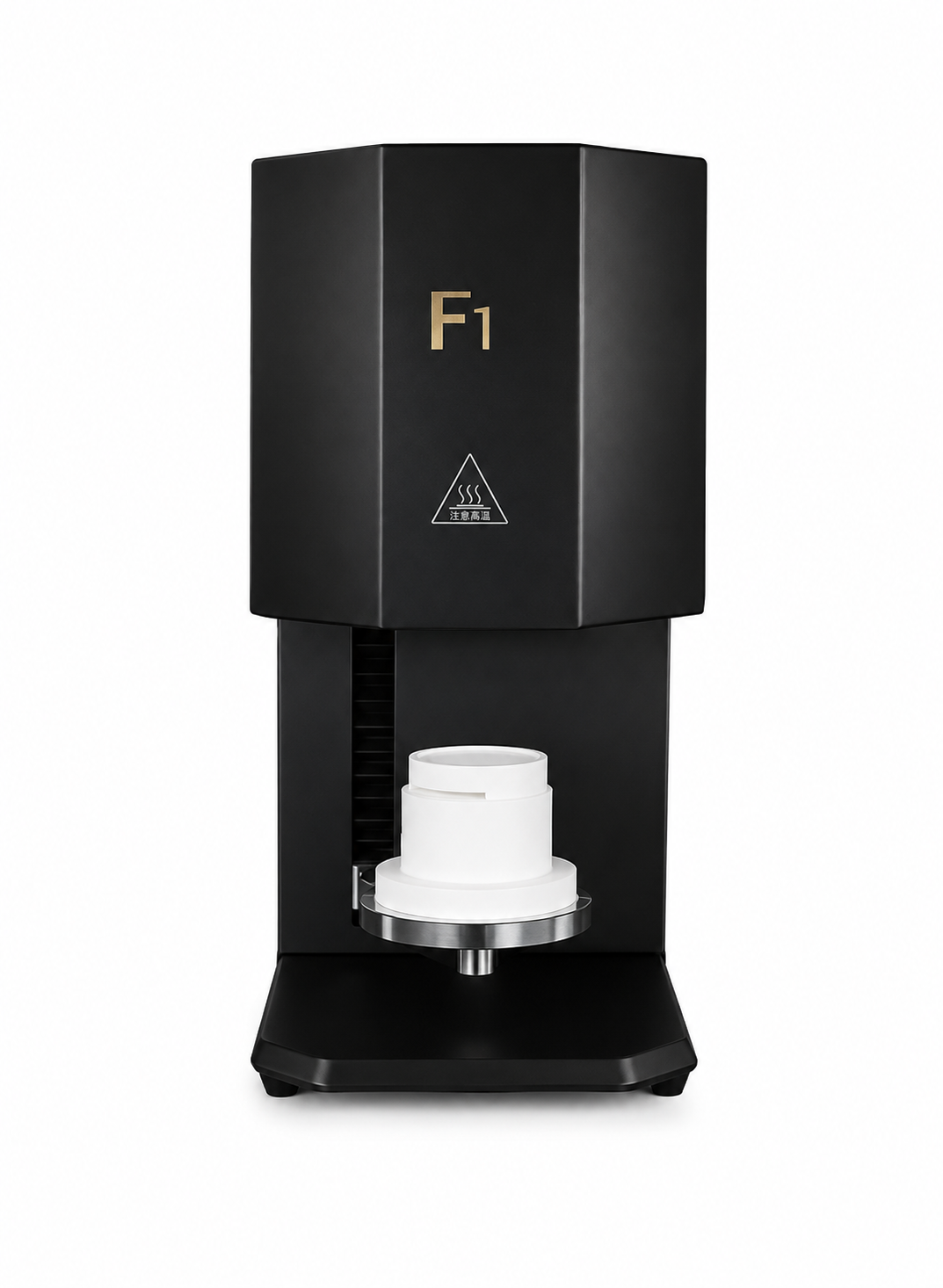

Zotion F1 Sintering Furnace
$6,000.00
The Zotion F1 Sintering Furnace is a high-speed dental zirconia sintering furnace designed to provide rapid, precise, and consistent firing for modern dental laboratory workflows. Capable of reaching temperatures up to 1650°C with heating rates of up to 150°C per minute, the F1 can complete select fast-sintering cycles in as little as 25 minutes, helping laboratories significantly reduce restoration turnaround times.
Designed for both efficiency and ease of operation, the Zotion F1 Sintering Furnace combines silicon molybdenum heating elements, precise temperature control, rapid heating and cooling, and an intuitive touchscreen interface. Its 1-liter chamber can accommodate up to two sintering trays and approximately 40 crowns, making it suitable for both individual restorations and larger production batches while maintaining a compact laboratory footprint.
Advantages
• Rapid sintering performance: Heating rates of up to 150°C per minute enable select zirconia restorations to complete fast-sintering cycles in approximately 25 minutes.
• High-temperature precision: A maximum temperature of 1650°C and temperature accuracy of ±1°C provide controlled, consistent firing for zirconia restorations.
• Efficient laboratory workflow: Touchscreen controls, programmable sintering profiles, rapid cooling, and capacity for up to approximately 40 crowns help simplify operation and increase daily productivity.
Technical Parameters
Product Type: Dental zirconia sintering furnace
Applications: Zirconia crowns, bridges, frameworks, and other zirconia dental restorations
Model: F1
Maximum Temperature: 1650°C
Maximum Heating Rate: Up to 150°C/min
Temperature Accuracy: ±1°C
Fast Sintering Time: As little as approximately 25 minutes for select restorations and compatible sintering programs
Heating Elements: Silicon molybdenum rods
Furnace Volume: 1 L
Capacity: Up to 2 sintering trays and approximately 40 crowns
Temperature Control: Digital touchscreen control system
Programming: Supports customizable fast and conventional sintering programs
Preset Programs: 20 editable sintering programs
Cooling System: Forced-air rapid convection cooling
Insulation: High-performance ceramic fiber insulation
Construction: Double-shell insulated furnace design
Rated Voltage: 220V AC ±20%, 50/60 Hz
Rated Power: 2500 W
Dimensions: Approximately 420 × 300 × 600 mm
Weight: Approximately 35 kg
Ideal Users: Dental laboratories, restorative laboratories, zirconia production facilities, and digital dental laboratories requiring rapid and high-volume sintering.
